Riviliitin set DIN kiskolle 2 pin ruuvilukitus

Etusivu > Teollisuus/Medical tuotteet > riviliittimet PCB

Riviliitin set DIN kiskolle 2 pin ruuvilukitus
Tuotemerkki
Tuotekoodi
TRV11384
Valm. tuotekoodi
65931
Toimituskulut alk.
3,45 €
sis. ALV 24,00 %
kpl

35mm DIN kiskolle riviliitin

Description

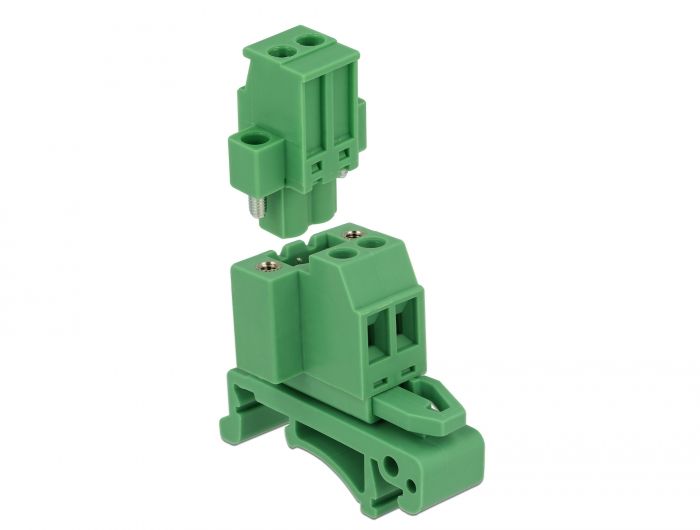

This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block.

DIN Rail Mounting
This terminal block set can be fixed on a DIN rail with a width of 35 mm.

Specification

• Connectors:
  Terminal block:
  1 x 2 pin terminal block male
  1 x 2 pin terminal block
  Connection terminal:
  1 x 2 pin terminal block female
  1 x 2 pin terminal block
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 34.90 x 21.40 mm



Package content

• Terminal block
• DIN rail clip
• Connection terminal
