Gigabit Ethernet kytkin 4 Port + 1 SFP, DIN kiskoasennus

Etusivu > Teollisuus/Medical tuotteet > din kisko oheislaitteet

Gigabit Ethernet kytkin 4 Port + 1 SFP, DIN kiskoasennus
Gigabit Ethernet kytkin 4 Port + 1 SFP, DIN kiskoasennus
Gigabit Ethernet kytkin 4 Port + 1 SFP, DIN kiskoasennus
Tuotemerkki
Tuotekoodi
TGG11364
Valm. tuotekoodi
87659
Toimituskulut alk.
177,00 €
sis. ALV 24,00 %
kpl

Gigabit switch 4 porttia
Asennus DIN kiskoon tai seinään
1 kpl SFP paikka

Description

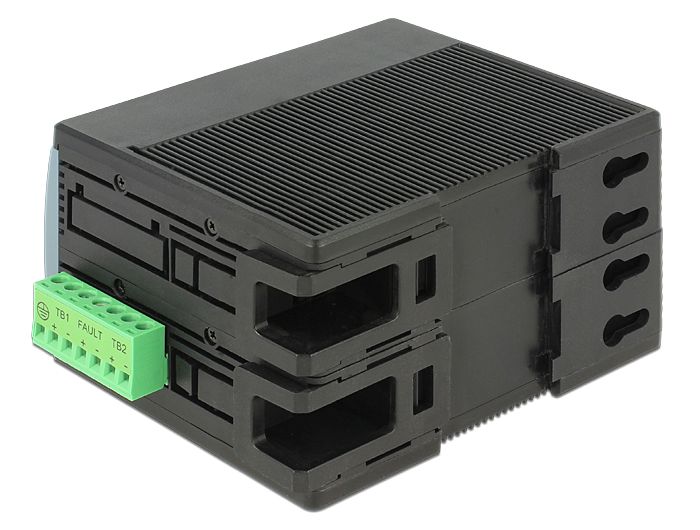

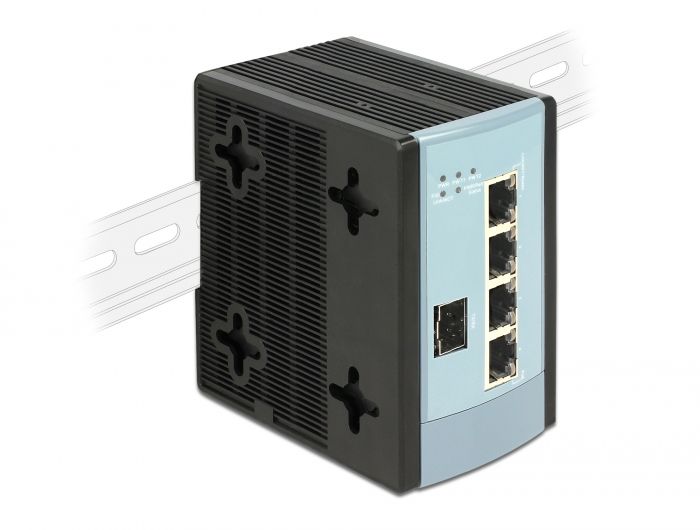

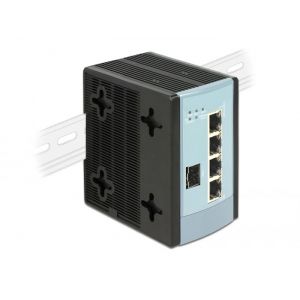

This Gigabit Ethernet Switch by Delock can be used to connect different network components. In addition, the built-in SFP slot allows you to expand the network with a fiber optic connection. The housing has a built-in mechanism for easy attachment to a DIN rail; alternatively there are several options for wall mounting.



Specification

• Connector:
    4 x RJ45 jack for 10/100/1000 Mb/s Base-T
    1 x SFP slot for 1 Gb/s SFP module (SFP module not included)
    1 x terminal block (power and alarm)
    1 x DC jack 5.5 x 2.1 mm (power)
• Data transfer rate up to 1 Gb/s
• 5 LEDs for status monitoring
• Flexible power option for 12 V to 54 V
• Redundant power supply (optional)
• Power consumption: max. 4.6 W
• Operating temparature: -20 °C ~ 60 °C
• Integrated DIN-rail mounting
• Dimensions (LxWxH): ca. 105 x 93 x 61 mm



Specification of power connector

• Ground outside, plus inside
• Dimensions:
    inside: ø ca. 2.1 mm
    outside: ø ca. 5.5 mm
    length: ca. 9 mm



System requirements

• Power supply with DC 12 ~ 54 V (not included)



Package content

• DIN-rail switch
• User manual
• Installation manual
