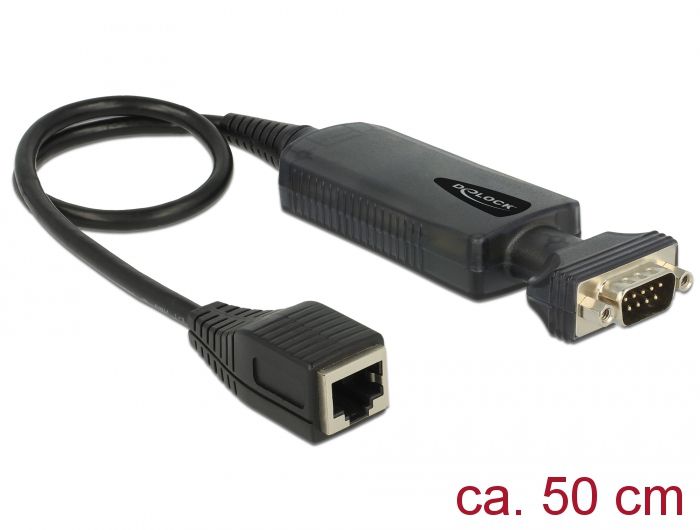

Sovittimen avulla voit liittää RS-232 sarjaporttilaitteen ethernet lähiverkon kautta käytettäväksi.
Ominaisuudet
• Connectors:
1 x Fast Ethernet RJ45 jack
1 x Serial RS-232 DB9 male with nuts
1 x DC power female 3.5 x 1.35 mm
• RS-232 serial:
Data transfer rate: 50 bps - 115 Kbps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parität: even, odd, none, mark, space
Buffer: FIFO 1 KByte
Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Ethernet standards:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
Media Access Control adressing (no IP configuration)
Auto connection and mapping with MAC address bound (Hot Swap)
Auto MDI/MDIX
• Transmission protocol: proprietary
• Password protection (optional)
• Plug & Play
• Data transfer latency: < 15 ms
• Keeps physical COM port in system also under offline mode (auto connect)
• Protection: ESD (electrostatic discharge):
±15 KV ESD Human Body Model (HBM)
±15 KV ESD IEC61000-4-2 Air Discharge
±8 KV ESD IEC61000-4-2 Contact Discharge
±4 KV ESD IEC61000-4-2 Line-to-Line
• Status LEDs:
Power
Ethernet connection
RS-232 connection and data
• Cable length incl. connectors: 50 cm
• Operating voltage: 5 V
• Power consumption: max. 2.5 W
• Housing: Polycarbonat
• Operating temperature: 0 °C ~ 60 °C
• Humidity: 5 ~ 95 %
• Weight: 67 g
• Dimensions (LxWxH): ca. 48 x 34 x 18 mm
Power supply specification
• Input: 100 ~ 240 V 50/60 Hz 0.2 A
• Output: 5 V / 1 A
• Cable length incl. connectors: ca. 120 cm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64/Server 2012R/2016
• Ethernet LAN 10/100/1000 Mbps
