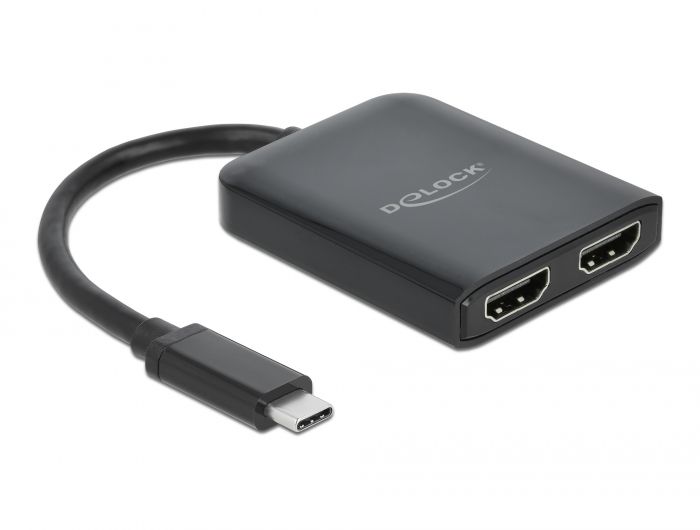

Splitteri jolla voit liittää kaksi HDMI liitäntäistä monitoria tietokoneen USB-C / Thunderbolt 3 liitäntään. USB-C liitännän pitää tukea Displayport alternate mode tilaa.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
VXP technology
If the connected computer does not support MST, the ViewXpand™ technology is activated. Multiple monitors with the same resolution are recognized as one single large display, allowing desktop display on multiple external monitors, e.g. in Mac OS. The maximum resolution is 3840 x 1080 @ 60 Hz.
• Connectors:
Input: 1 x USB Type-C™ male
Output: 2 x HDMI-A female
• Chipset: VMM5200
• DisplayPort 1.4 specification
• High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
• Supports HDR
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.1 or 1.2 Single-Stream Transport (SST):
up to 3840 x 1080 @ 60 Hz (VXP)
DisplayPort 1.2 Multi-Stream Transport (MST):
up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended)
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Transmission of audio and video signals
• USB bus powered
• Colour: black
• Cable length incl. connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 61 x 49 x 12 mm
System requirements
• Windows 10
• Mac OS 10.14.4 or above
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
